Juicer Juicers BigTop

For large fruits with automatic feeding

The perfect solution for medium and high consumption places: cafés, bars, hotels, restaurants, supermarkets or juice shops.

The new BIGTOP juicer is the perfect choice for those who want to get the most out of squeezing larger diameter fruits such as pomegranates, lemons or grapefruit.
With this new model, Zumoval combines the best features and performance of our BigBasic model with the largest capacity automatic feeder.
In addition, like all Zumoval juicers, it allows you to add multiple combinations of options to adapt the juicer to the needs or preferences of each customer.

Available colours

See technical specifications

Characteristics

Fruits per minute

25 Kg

Basket capacity

75-90 mm

Squeezing diameter

18 Kg

Waste bin capacity

Our BigTop juicer has a capacity of 25 kg in the automatic feeding basket.
Thanks to its large capacity, it offers ample juicing autonomy.

The cover is designed in one piece, making it easy to clean.
The protective screen is made of Tritan, a highly resistant and durable material that is totally non-toxic.

It is equipped with an easy-to-use 3.0 digital display that includes various functions such as fruit counter, tank capacity indicator…
In addition, the display allows you to program the operating mode that best suits your needs.

The BigTop juicer has a double waste bin capacity of 18 kg.
The 3.0 digital display will inform you when the peel buckets have to be emptied.

Options

Stainless Steel Self-Tap

The Stainless Steel Self-Tap is specially designed to operate in self-service mode. When the tap is opened, the machine starts to squeeze, stopping when the tap is closed. By turning the tap handle on itself, you can choose between continuous or discontinuous filling.

Self-Cleaning System

Our self-cleaning system has a double high-pressure water outlet allowing a fast and intensive cleaning of the squeezing area, keeping the machine clean and hygienic at all times and saving time in the subsequent cleaning process.

Pulp-Out Filter & Stainless Steel Self-Tap

The pulp extraction filter allows the seeds and pulp to be removed directly into the waste bin by simply moving the sweeping blade to either side. The filter is clean in just a few seconds.

Automatic Filter & Stainless Steel Self-Tap

The NEW automatic double-action filter allows the automatic removal of pulp and seeds directly on the waste bin.

Bottle holder

The Zumoval bottle holder adapts to the Self-Inox tap allowing bottles to be filled without having to hold them. An ideal solution for convenience in self-service mode.

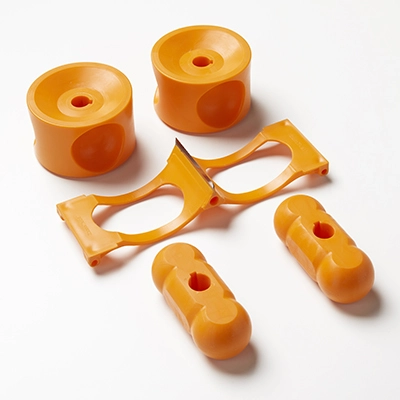

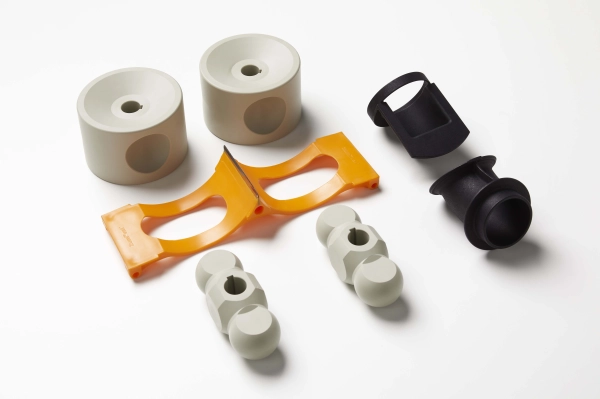

Squeezing kit

Optional 45-60 mm kit that allows the squeezing of small citrus fruits such as small oranges, limes or mandarins. It is easily interchangeable by the user and allows the juicer to be much more versatile.

Stand versions

BigTop SERVICE

Support specially designed for places with self-service demand with high consumption.
It offers a variety of options and combinations.

Waste bin capacity
50 Kg / 110 Lbs / 300 squeezed oranges approx.

See technical specifications

BigTop SERVICE P-OUT

Support specially designed for places with self-service demand with high consumption.
With the Pulp-Out Filter & Stailess Steel Self-Tap option, seeds and pulp are easily removed to the waste bin.
A perfect solution to obtain the best quality juice.

Waste bin capacity
50 Kg / 110 Lbs / 300 squeezed oranges approx.

BigTop SERVICE F-AUTO

Support specially designed for places with self-service demand with high consumption.
With the Automatic Double Action Filter & Stainless Steel Self-Tap option, the pulp and seeds are automatically transported into the waste bin.
The optimal solution for those places with high demand that want to offer their customers freshly squeezed juice with the utmost convenience.

Waste bin capacity
50 Kg / 110 Lbs / 300 squeezed oranges approx.

BigTop DISPENSER

A storage container is provided for this cobinet, allowing freshly squeezed juice to be obtained without having to wait for it.

Waste bin capacity
50 Kg / 110 Lbs / 300 squeezed oranges approx.

Dispenser capacity
5 Liters

Configurable option

Juice level detector
Automatic filling system that allows up to 5 liters of fresh juice to be permanently available. This option is controlled from the 3.0 digital display.

Configurable option

Juice level detector
Automatic filling system that allows up to 5 liters of fresh juice to be permanently available. This option is controlled from the 3.0 digital display.

BigTop FRIGO

Stand equipped with a 7 liter juice dispenser which is cooled by a cooling unit, which keeps the juice at the desired temperature. The best option to serve fresh and cold juice at all times.

Waste bin capacity
33 Kg / 72,7 Lbs / 200 squeezed oranges approx.

Tank capacity
7 Liters

Configurable option

Juice level detector
Automatic filling system that allows up to 7 liters of fresh juice to be permanently available. This option is controlled from the 3.0 digital display.

Configurable option

Juice level detector
Automatic filling system that allows up to 7 liters of fresh juice to be permanently available. This option is controlled from the 3.0 digital display.

Countertop versions

BigTop BT COUNTERTOP

Designed for tabletop juicers. It allows to raise the juicer 13 cm to facilitate the filling of bottles up to 1 liter with perfect adjustment under the tap.
Combined with the Pulp-Out filter, it allows you to swipe seeds and pulp directly into the waste bin.

Waste bin capacity
18 Kg / 40 Lbs / 108 oranges squeezed approx.

See technical specifications

BigTop BT PULP-OUT COUNTERTOP

Designed for tabletop juicers. It allows to raise the juicer 13 cm to facilitate the filling of bottles up to 1 liter with perfect adjustment under the tap.
Combined with the Pulp-Out filter, it allows the pulp and seeds to be evacuated into the lower waste bin.

See technical specifications
